SAVE A LIFE WITH TRUSTED TECHNOLOGY & PROVEN SUCCESS

The iPAD SP1 defibrillator has been developed with the end user in mind, making it as easy as possible to use. Its award-winning design and high quality manufacture incorporates the latest in defibrillation technology to assist the user in saving precious seconds when every second counts.

In operation, the iPAD SP1 intelligently guides the user with calm voice prompts and large, clear illustrations which illuminate to highlight key commands.  Instructions are given at every step and importantly, the voice prompts automatically adjust to background noise. This can be crucial when surrounding noise escalates and in challenging environments if sudden cardiac strikes.  The ambient noise detector is also useful in busy training environments.

Should the need arise for a defibrillator to be used on a child, the iPAD SP1 is equipped with pre-connected dual electrode pads that can be used on both adults and children. By simply lifting a clear, safety cover on the front, the device can be switched immediately to paediatric mode. This saves valuable time and anxiety in an emergency.

Importantly, the iPAD SP1 defibrillators are fully pad compatible with defibrillators carried on front line NHS Ambulances. A simple plug-in adapter saves pad changes when backup arrives, assisting in patient care, saving precious time and indeed costs.

Widely used by the NHS Ambulance Service, the Emergency Services and in Public Access schemes, community projects and commercial organisations.

reg-guide

iPAD Registration & Usage

set up guide

iPAD Setup Guide

(Click image to download more information)

  • CLEAR AND USER FRIENDLY TO OPERATE AND MAINTAIN

    Guidance at every step with clear illuminated illustrations, calm voice prompts & large responsive buttons.

  • SIMPLE SWITCH SELECTION FROM ADULT TO CHILD MODE

    The same set of electrode pads for both adults and children.  No additional pads required,  saving precious time and expense.

  • null

    PRE-CONNECTED ADULT/CHILD “SMART” ELECTRODE PADS

    Pad indicator displays illustrates pad life remaining, with verbal instructions to “replace pads” or to “connect pads”.

  • AUTOMATIC ADJUSTMENT TO BACKGROUND NOISE

    Voice prompts can adjust up to 90 decibels, so it can always be heard easily in noisy environments.

  • null

    CPR DETECTION & METRONOME

    Voice prompts can adjust up to 90 decibels, so it can always be heard easily in noisy environments.

  • null

    PLUG-IN PAD ADAPTERS TO STOP PAD CHANGES WHEN BACKUP ARRIVES

    Pad compatibility with front line vehicles of the NHS Ambulance Services, streamlines the handover to of a patient to advanced care.

Additional Information

The Standard SP1 Package

  • Every SP1 comes with a 7 year warranty, which can be upgraded to 10 years free of charge. Requires you to register your defibrillator at: iPAD Members
  • Two sets of electrode pads, one pre-connected into the AED and the other one is a spare. These electrode pads can be used on adults and children (aged 1+).
  • One Lithium Manganese Oxide battery, which is disposable. The battery is expected to last up to five years (in standby) and comes with a warranty of four years.
  • Two sets of AED rescue kits, which include:

    • – 2 x Patient Wipe
    • – 1 x Nitrile Goves
    • – 1 x Prep Razor
    • – 1 x Face Shield
    • – Tough cut scissors

Consumables & Accessories

iPAD SP1 Wall Bracket
Supplier Code: 63138

iPAD SP1 Indoor Cabinet (Alarmed)
Supplier Code: 63043

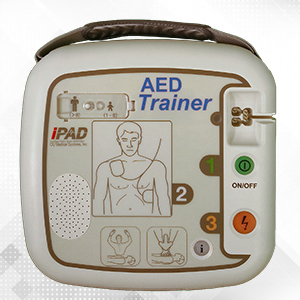

iPAD SP1 Trainer
Supplier Code: 25905

iPAD SP1 Disposable Battery

Supplier Code: 63032

iPAD SP1 Adult Pads
Supplier Code: 63124

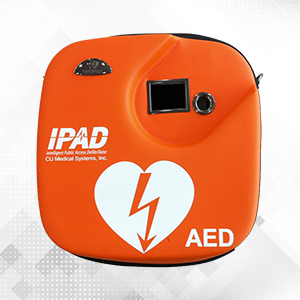

iPAD SP1 Carry Case
Supplier Code: 63034

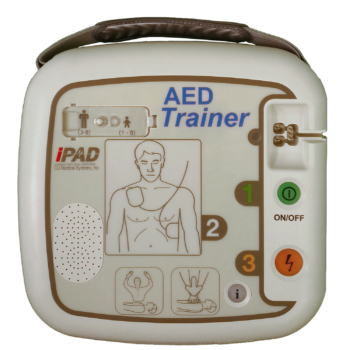

iPAD SP1 Training Unit

This lightweight training unit allows people to learn how to use the iPAD SP1 AED in a training environment. It mimics the features & functions of a live unit, but is for training purposes only – it is incapable of delivering a shock. This gives people a realistic experience of a variety of scenarios.

  • SIMULATION OF THE FEATURES & FUNCTIONS OF IPAD SP1 AED
    Provides a realistic experience for those learning how to use the iPAD SP1, enabling them to become familiar with the device.
  • OPERATED BY & SUPPLIED WITH STANDARD BATTERIES
    The training unit & remote control are powered by the standard batteries supplied with it. No specialist replacements required.
  • EIGHT DIFFERENT TRAINING SCENARIOS
    Giving learners confidence in a range of scenarios that they might encounter in an emergency.
  • SUPPLIED WITH INFRARED REMOTE CONTROL
    This can reproduce all 8 scenarios above as well as situations such as low battery, pads off and volume control.
  • SUPPLIED WITH A SET OF IPAD SP1 TRAINING PADS
    The training pads are especially designed for training purposes.
SP1_Trainer_large
Device Specifications – Model Name: CU-SP1
Physical
Category Nominal Specifications
Dimensions 260mm x 256mm x 69.5mm (Width x Length x Height)
Weight 2.4kg (Including the battery pack and pads)
Environmental
Category Nominal Specifications
Operational Status (The device is in emergency use)
Temperature: 0°C ~ 43°C (32°F ~ 109°F)
Humidity: 5% ~ 95% (non condensing)
Standby Status (The device is stored together with the defibrillator pads and the battery pack is inserted ready to be used in an emergency)
Temperature: 0°C~ 43°C (32°F ~ 109°F)
Humidity: 5% ~ 95% (non condensing)
Altitude 0 to 15,000 feet (operational and storage)
Drop Withstands 1.2-meter drop to any edge, corner, or surface
Vibration Operating: Meets MIL-STD-810G Fig.514.6E-1, random
Standby: Meets MIL-STD-810G Fig.514.6E-2, swept sine (helicopter)
Sealing IEC 60529: IP55
ESD Meets IEC 61000-4-2:2001
EMI (Radiated) Meets IEC 60601-1-2 limits, method EN 55011:2007 +A2:2007, Group 1, Class B
EMI (Immunity) Meets IEC 60601-1-2 limits, method EN 61000-4-3:2006 +A1:2008 Level 3 (10V/m 80MHz to 2500MHz)
Defibrillator
Category Nominal Specifications
Operating Mode Fully-automatic or Semi-automated
Waveform e-cube biphasic (Truncated exponential type)
Output Energy 150 J at 50 Ω  load for adults
50 J at 50 Ω load for children
Charge Control Controlled by an automated patient analysis system
Energy Storage 10 seconds, typical. Using new disposable LiMnO2 battery pack (at 20°C)
Charging Time 11 seconds, typical. Using new disposable LiMnO2 battery pack, depleted by 15 discharges at 200 Joules per discharge (at 20°C)
Time from CPR to Shock Less than 6 seconds from the completion of CPR to shock delivery
Discharge The device performs a self-discharge in the following events:
When the patients ECG changes to a rhythm that does not require defibrillation.
When the device is turned off by pressing the Power Button for at least a second.
When the pad is detached from the patients body or the pad connector is detached from the device.
When the impedance of the patient is out of the range of defibrillation (25 Ω ~ 175 Ω)
(Semi-automatic only) When the shock button is not pressed within 15 seconds from the completion of the charge.
Fully-Automatic Shock Shock is automatically delivered if a shockable rhythm is detected
